Upgrade your home’s perimeter with our heavy-duty Residential iron fence system. Engineered from cold-formed steel tubing, this elegant two-rail design offers the classic sophistication of traditional wrought iron without the constant maintenance. For homeowners seeking a mixed-material, contemporary look, this system also acts as the perfect, robust structural complement to a Residential corrugated metal fence.
Each 94-inch wide panel can be easily “cut to suit” your yard’s unique layout. What sets this fence apart is its uncompromising defense against the elements: it features an interior and exterior Galvalume coating, a chromate conversion layer, and a thermally bonded polyester powder coating (minimum 2.5 mils thick). Available in heights from 34 to 70 inches and finished in High Gloss Black, White, or custom colors, this fence is a beautiful, ready-to-install solution for your property’s security and curb appeal.
Product Content:

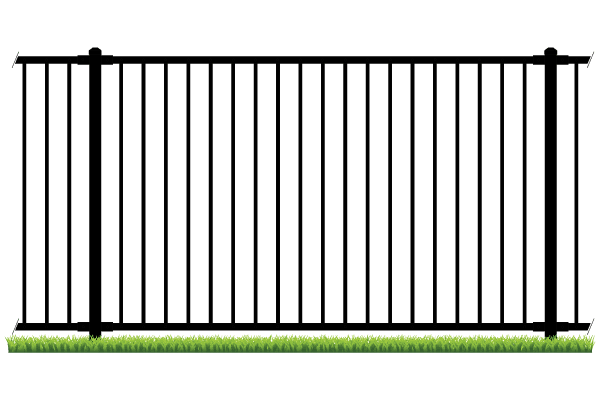

Residential iron fence two rails specification:
POSTS, RAILS & PICKETS: COLD-FORMED STEEL TUBING
FINISH: INTERIOR AND EXTERIOR GALVALUME COATING, CHROMATE CONVERSION COATING ELECTROSTATICALLY APPLIED, THERMALLY BONDED POLYESTER POWDER COATING, MINIMUM FILM THICKNESS 2.5 MILS
POST CAPS: PYRAMID OR BALL
POSTS: 50mmx50mm(2”x2”)16 GAUGE
PICKETS: 16mmx16mm(5/8”x5/8”)18 GAUGE
RAILS: 25mmx25mm(1-9/16”x1-9/16”)14 GAUGE or 32mmx32mm(1-1/4”x1-1/4”)14 GAUGE
FITTINGS: 15 GAUGE STAMPED FORGED FACTORY FINISH
STANDARD PANEL HEIGHT:
34″ (863.6mm)
40″ (1016mm)
46″ (1168.4mm)
58″ (1473.2mm)
70″ (1778mm)
STANDARD PANEL WIDTH:
94″(2387mm)
(PANELS MAY BE CUT TO SUIT)
STANDARD COLORS:
STANDARD – HIGH GLOSS BLACK & WHITE; OPTIONS – FENCE BROWN, FENCE GREEN; CUSTOM COLORS AVAILABLE UPON REQUEST
Engineered for Elegance and Maximum Endurance
Securing your home shouldn’t mean sacrificing its architectural charm. Our two-rail Residential iron fence delivers the timeless aesthetic of traditional ironwork, fortified by modern metallurgy. Whether you are defining a welcoming front yard boundary or integrating it alongside a Residential corrugated metal fence for a modern, high-privacy design, this system provides unmatched structural integrity.
Heavy-Duty Steel Construction
This system is constructed from cold-formed steel tubing, ensuring your perimeter stands strong against impact and harsh weather.
-
Posts: 2″ x 2″ (16-gauge) for a rock-solid, unyielding foundation.
-
Rails: 14-gauge steel (available in 1-1/4″ or 1-9/16″) to eliminate sagging.
-
Pickets: 5/8″ x 5/8″ (18-gauge) offering a sleek yet highly secure barrier.
Advanced Multi-Layer Weather Protection
Standard iron is notorious for rusting, but our fencing is engineered for absolute longevity. Every component undergoes a rigorous, multi-step finishing process:
-
Interior and exterior Galvalume coating for ultimate rust defense.
-
A chromate conversion coating to expertly prepare and seal the metal.
-
An electrostatically applied, thermally bonded polyester powder coating. This creates a minimum 2.5 mil film thickness, guaranteeing a brilliant, fade-resistant finish that drastically outlasts standard wet paint.
Customizable to Your Property
We supply standard panel widths of 94 inches, which are designed to be easily cut on-site to match the exact dimensions of your landscape. Choose from a versatile range of standard heights—from a decorative 34 inches up to a secure 70 inches. Cap off your installation with your choice of classic Pyramid or Ball post caps. Available in High Gloss Black, White, Fence Brown, Fence Green, or fully custom colors, this system elevates your home’s unique style while keeping your loved ones safe.
Product Features
- Our ornamental steel fencing line is easily rackable to suit grade changes. While the rigidity of a traditional welded fence requires stair-stepping of panels on hills and slopes, a rackable fence adjusts to follow the contour of the landscape.

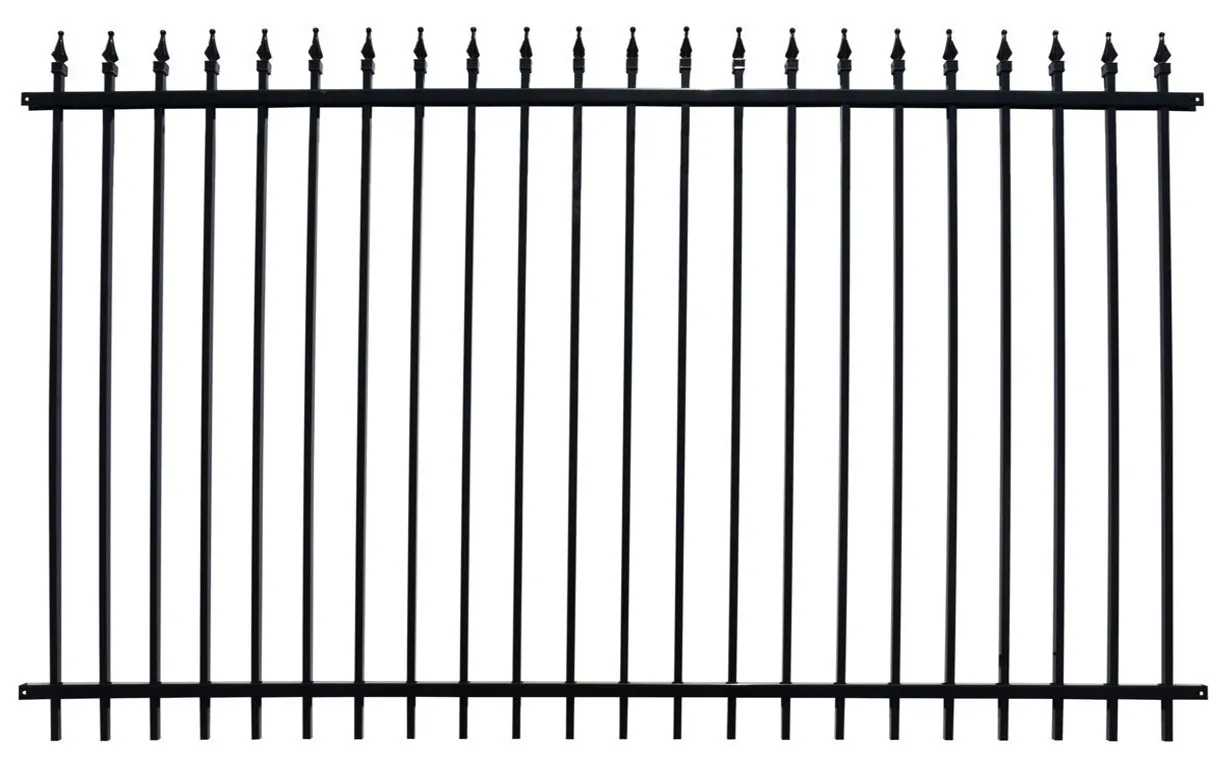

- Flat top, flat top/flat bottom, extended picket, pressed spear, extended picket/flat bottom, pressed spear/flat bottom and pool panels
- Enhance your fence with accessories such as finials, knuckles, ball caps and rings
- Simple bracket design speeds installation and won’t compromise the shield coating, which reduces labor cost
- Our ornamental steel fencing line includes walk and drive gates to match each fence style. We can also design and build a custom gate to your specifications in a broad range of premium finishes. Available gate styles include 4' flat, 4' arched, 5' flat, 5' arched, 6' drive, 8' drive and 8' arched drive.

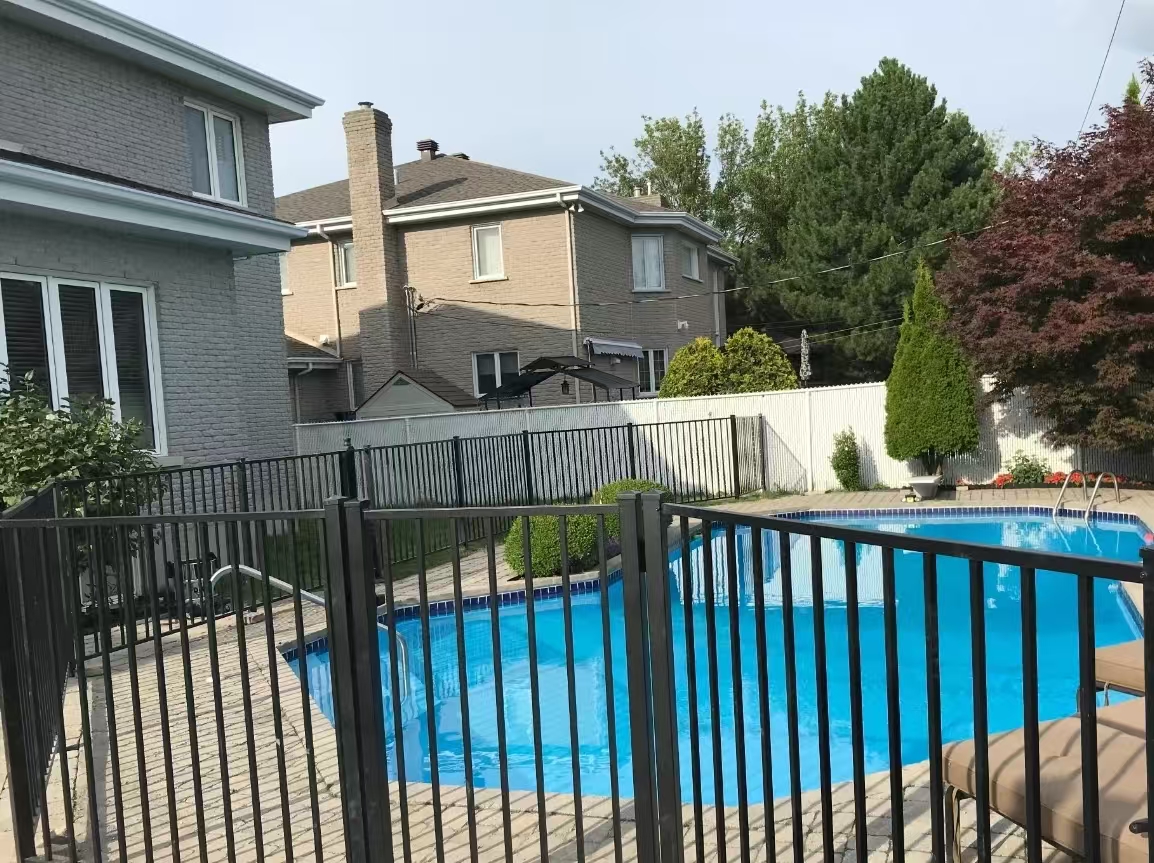

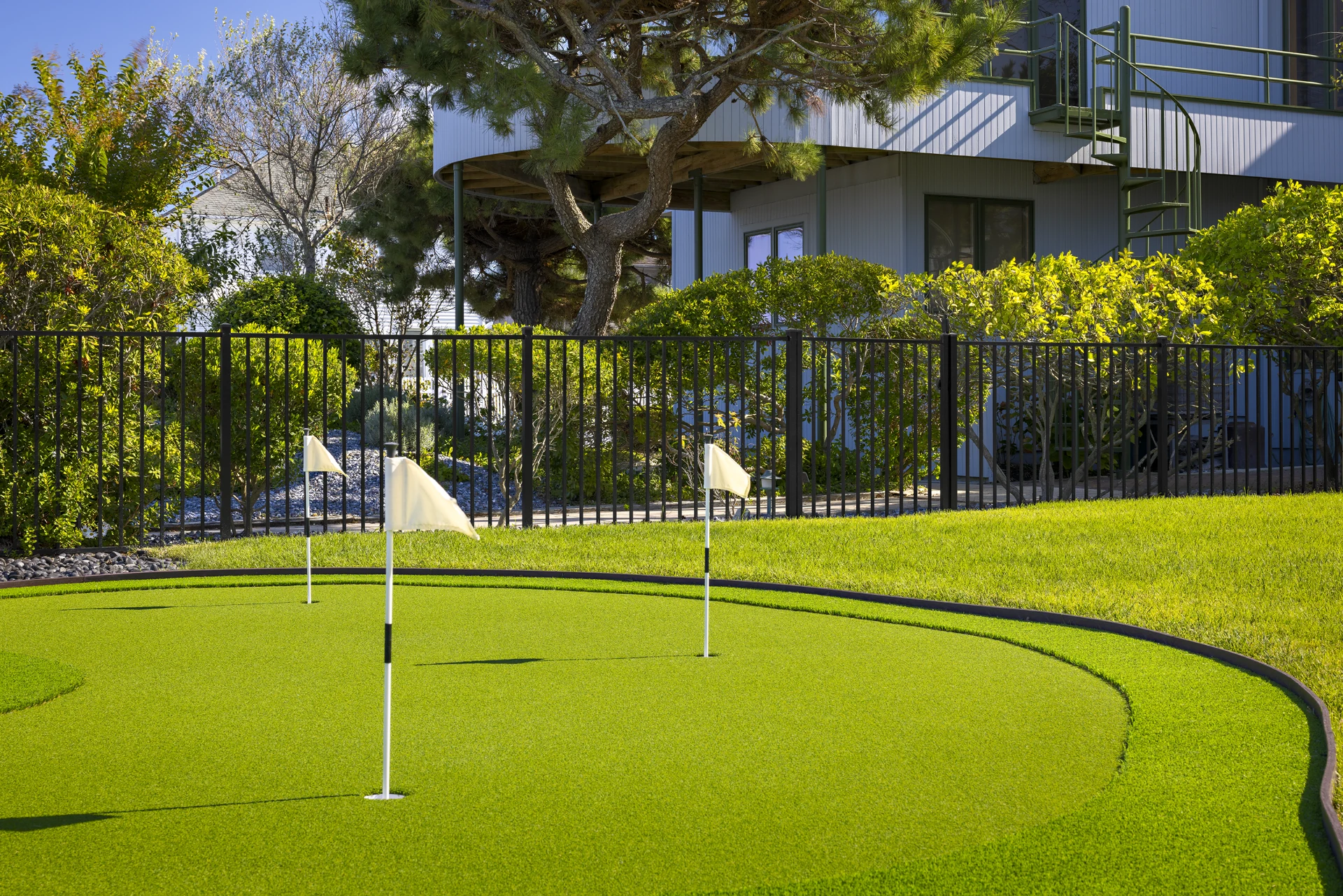

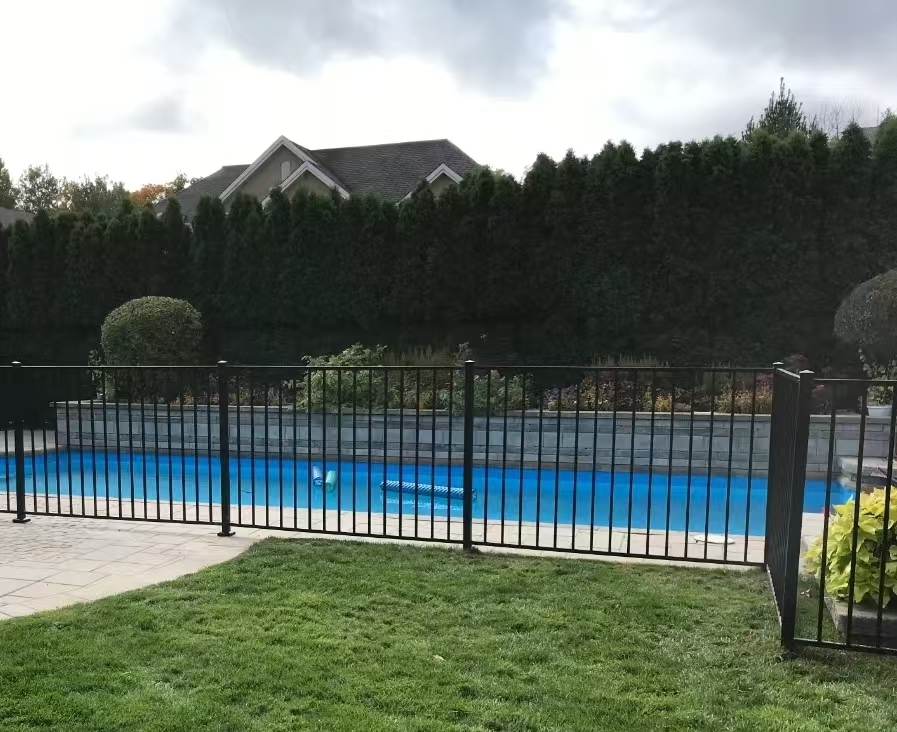

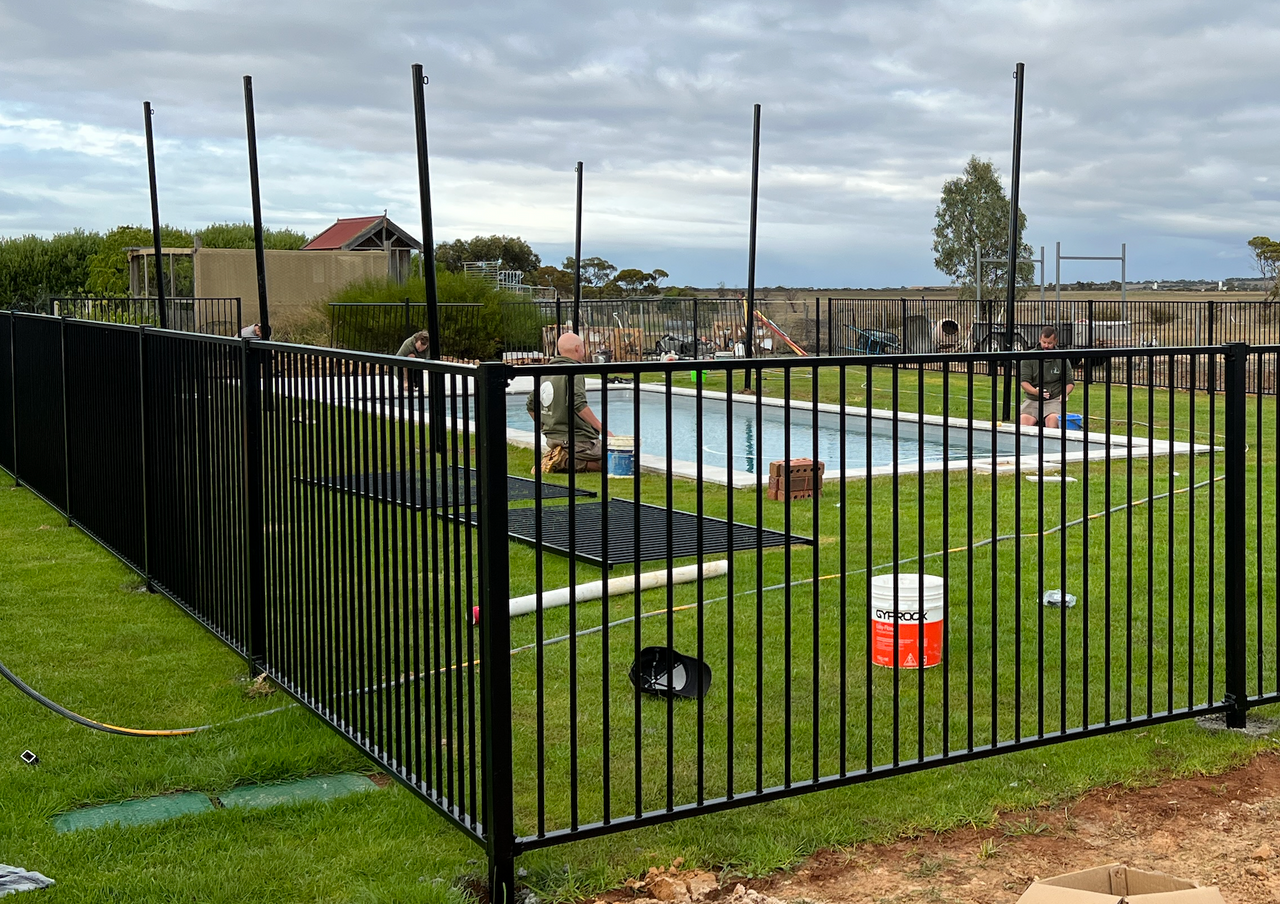

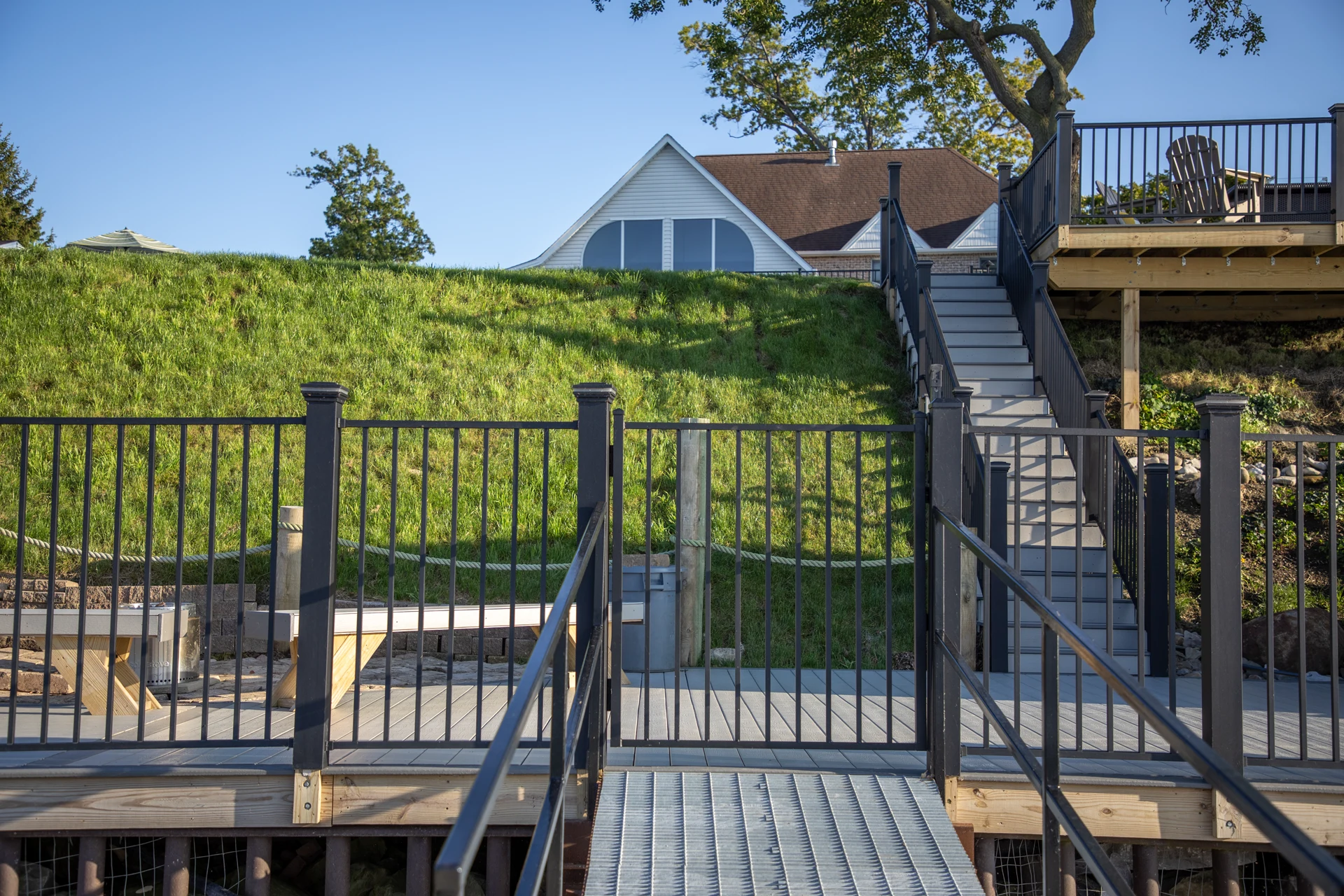

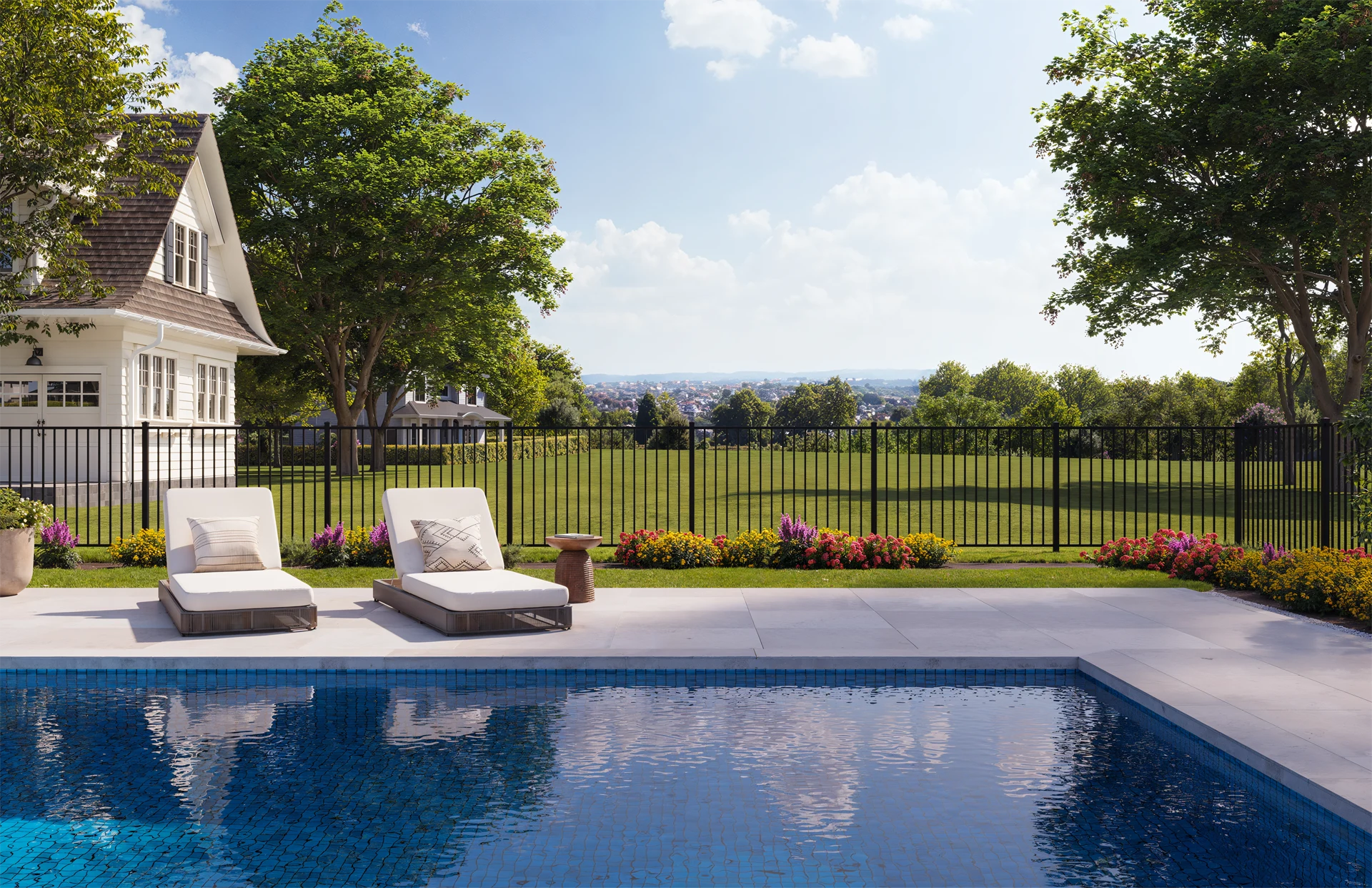

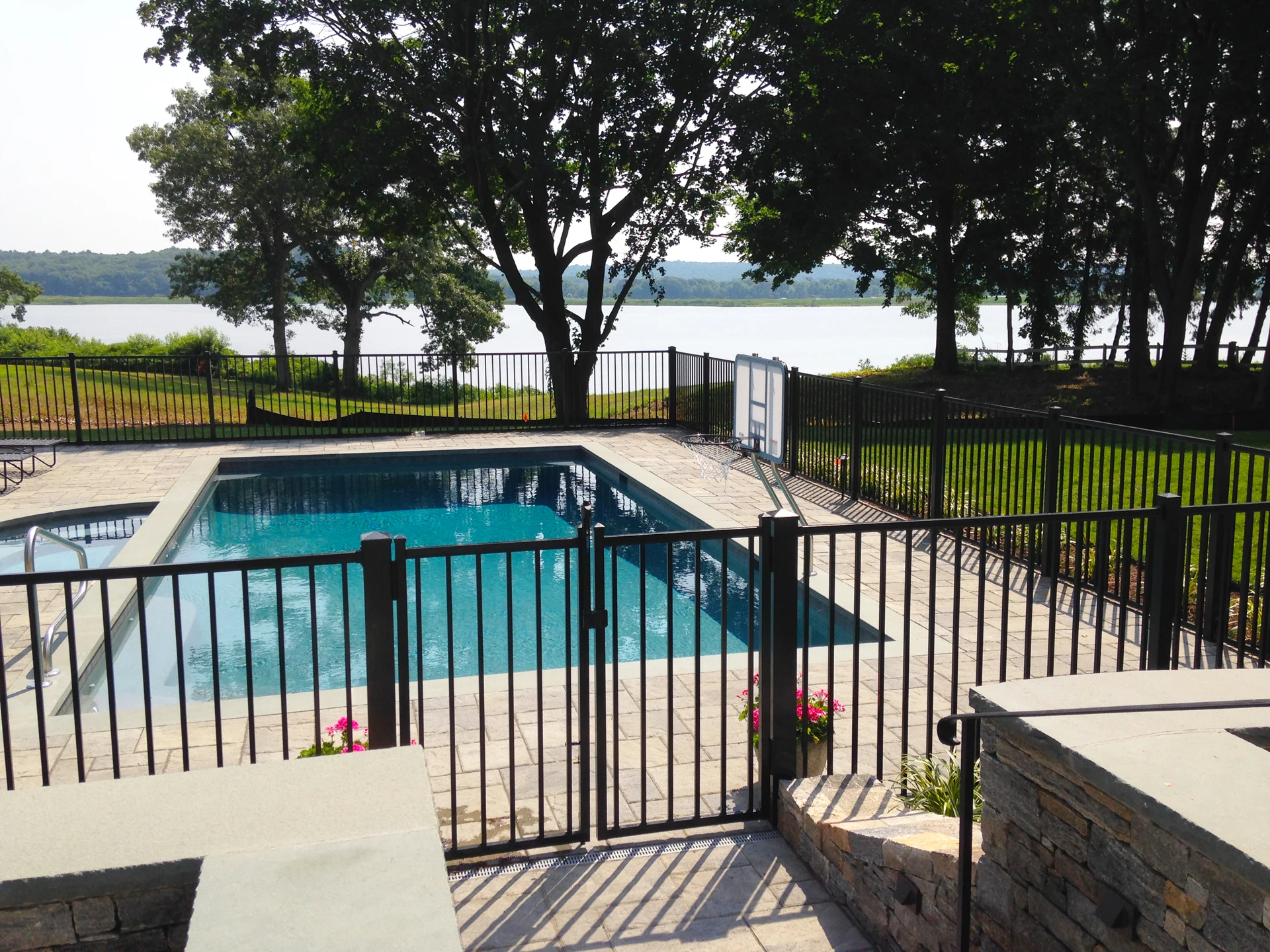

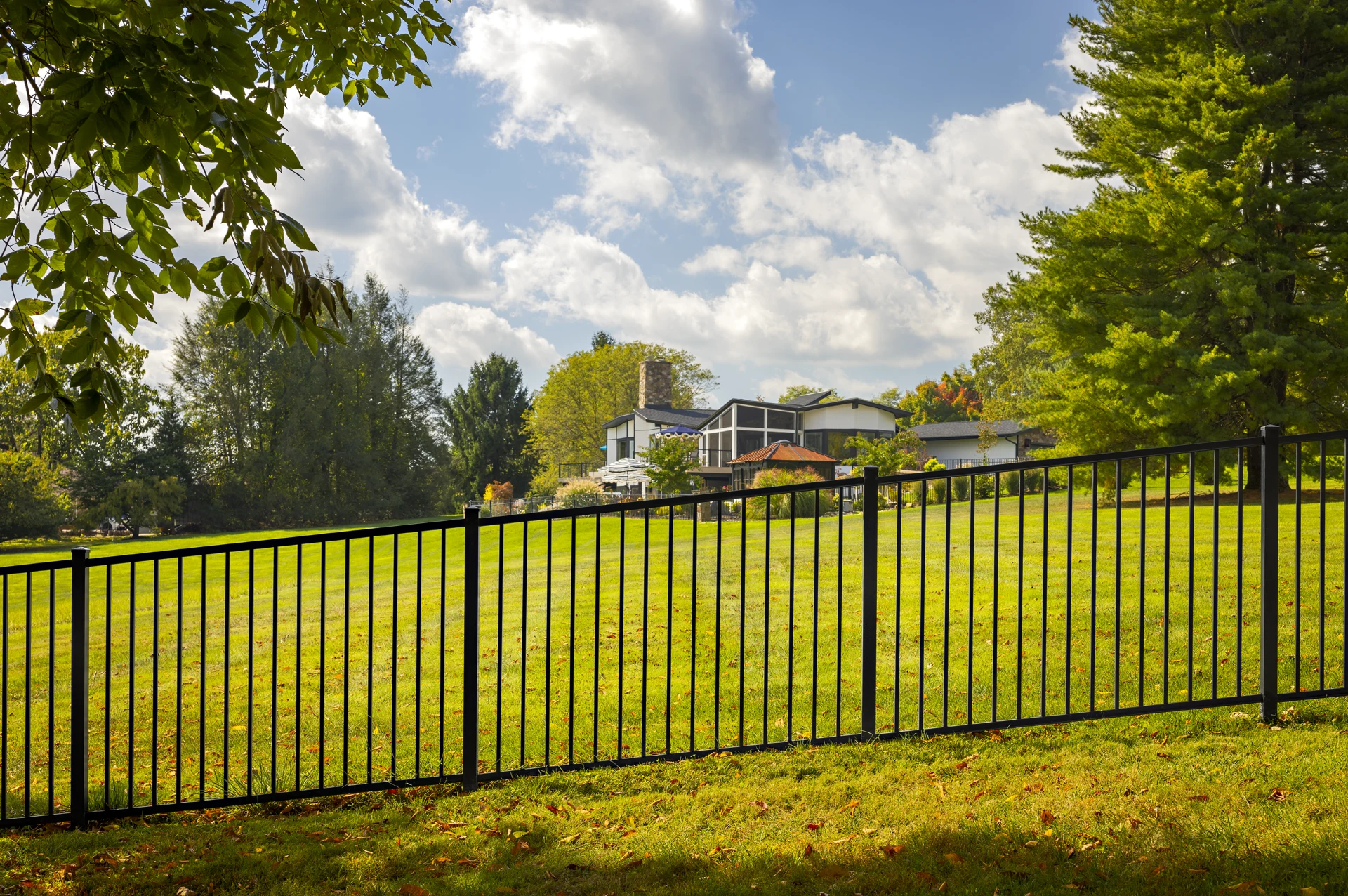

Applications
Manufacturing Process
1
Material Preparation
Premium raw material selection
2
Laser Cutting
Precision cutting for a perfect fit
3
Welding
Robust frame construction
4
Polishing
Smooth, safe edges
8
Packing & Shipping
Secure packaging
7
Quality Check
Rigorous inspection
6
Curing
High-temperature treatment
5
Powder Coating
Durable finish application
Why Choose YLOONG？
Quality Assurance
15-year product warranty
Rigorous quality control checks
Every component is tested before shipment
Customization Options
OEM & ODM services available
Custom sizes, colors, and specifications
Material and process customization
Competitive Advantage
Factory direct pricing
20+ years industry expertise
One-on-one customer service
Comprehensive Support
24/7 customer service
Technical drawings and consultations
Complete product documentation
Packing & Shipping
Secure Packaging Process:
- Each item is protected with bubble wrap
- Secured in sturdy wooden casesor Pallet
Shipping Options:
- DHL, UPS, FedEx, TNT express shipping
- FOB, CIF, and DDP terms available
Packing
Loading
Delivery
FAQ
No. Our fencing features a multi-layer defense system, including Galvalume coating and a thermally bonded polyester powder coating. It is virtually maintenance-free and highly resistant to rust and fading.
That is not a problem! Our standard 94-inch panels are specifically designed to be "cut to suit" on-site during installation, ensuring a perfect fit for any yard layout or slope.
Yes. The heavy-duty 16-gauge posts and robust steel rails provide an excellent structural framework that can complement or support corrugated metal privacy panels for a modern, industrial-chic look.
We offer a wide range of standard heights to fit your specific needs: 34", 40", 46", 58", and 70" (ranging from 863.6mm to 1778mm).
Our standard colors are High Gloss Black and White. We also offer Fence Brown and Fence Green as options, and we can provide fully custom colors upon request to match your home's exterior.
You can customize the final look of your fence by choosing between two classic post cap styles: a sleek Pyramid cap or a decorative Ball cap.
